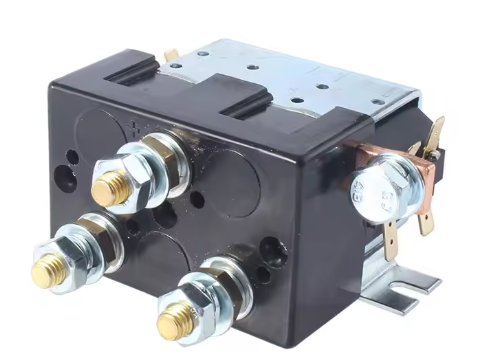

RA-1-105-218 Contactor for Raymond Pallet Truck (24V) – Directional Switch
SKU: RA 1-105-218
Product Reviews (0)
Purchased this product? Let us know your feedback by logging in to your account
Product Description
The RA-1-105-218 contactor is a 24-volt DC forward/reverse contactor used in Raymond walkie pallet trucks. It acts as an electric switch that directs power to the drive motor for forward and reverse travel. This heavy-duty unit is compatible with Raymond Model 19 and Models 111, 112, 113, and 114 electric pallet jacks. The contactor assembly includes an integrated mounting bracket for easy installation. It is an aftermarket replacement built to meet OEM specifications, ensuring reliable motor control and safe directional switching in your Raymond forklift.
Cross References
This contactor can also be found under the following part numbers:
Product Specification
Features of this Product
24V DC coil matches Raymond electric pallet jack systems.
Switches drive the motor forward and reverse for smooth travel.
Heavy-duty copper contacts resist wear and handle high current.
Built-in bracket allows direct bolt-on installation with no mods.
Aftermarket unit meets OEM specs at a lower cost.
Encapsulated coil resists dust and vibration for reliable operation.
Restores safe, efficient performance and prevents electrical issues.
Warranty Information
This contactor comes with a 1-year limited manufacturer's warranty against manufacturing defects.
Our Return & Refund Policy
We accept returns within 30 days if the item is unused, in original condition, and in original packaging with proof of purchase. Non-defective returns incur a 20% restocking fee. See our Refund Policy for details.
Not Sure If This Contactor Fits Your Equipment?
We’re here to help. Reach us at 832-239-5393 or 1-800-210-8170, email info@palletjackson.com, or use our live chat. We’re available Monday–Friday, 9 am–6 pm EST. We’ll ensure you get the correct contactor for your model, hassle-free.
Frequently Asked Questions
Q: What is the function of a contactor in a Raymond pallet jack?
A: The contactor is a heavy-duty switch that powers the drive motor. When you press the travel control, it closes to send battery current to the motor, moving the jack. It also reverses polarity for backward motion. Without a functioning contactor, the motor cannot energize so the pallet jack won’t move in either direction.
Q: Can this 24V contactor be used on a 36V or 48V forklift?
A: No. The RA-1-105-218 is rated for 24V systems only. Using it on 36V or 48V equipment can burn out the coil or damage contacts.
Q: What is the difference between a contactor and a relay?
A: Both are electrically controlled switches, but a contactor handles much higher current. Relays are used for small control circuits, while contactors are designed for motors and heavy loads. Contactors use larger contacts, arc suppression, and stronger construction to handle hundreds of amps. In short, a contactor is a heavy-duty relay built for industrial power circuits.
Q: What are the electrical ratings of this contactor?
A: The RA-1-105-218 coil runs on 24V DC. The contacts are built to handle several hundred amps—enough for the traction motor’s surge current during startup and its lower continuous current during operation. These ratings enable the contractor to operate the pallet jack reliably in the 2.5-ton class Raymond pallet jack.
