RA-312636-000 Load Wheel for Raymond 8210 Electric Pallet Jack
SKU: RA 312636-000
Product Reviews (0)
Purchased this product? Let us know your feedback by logging in to your account
Product Description

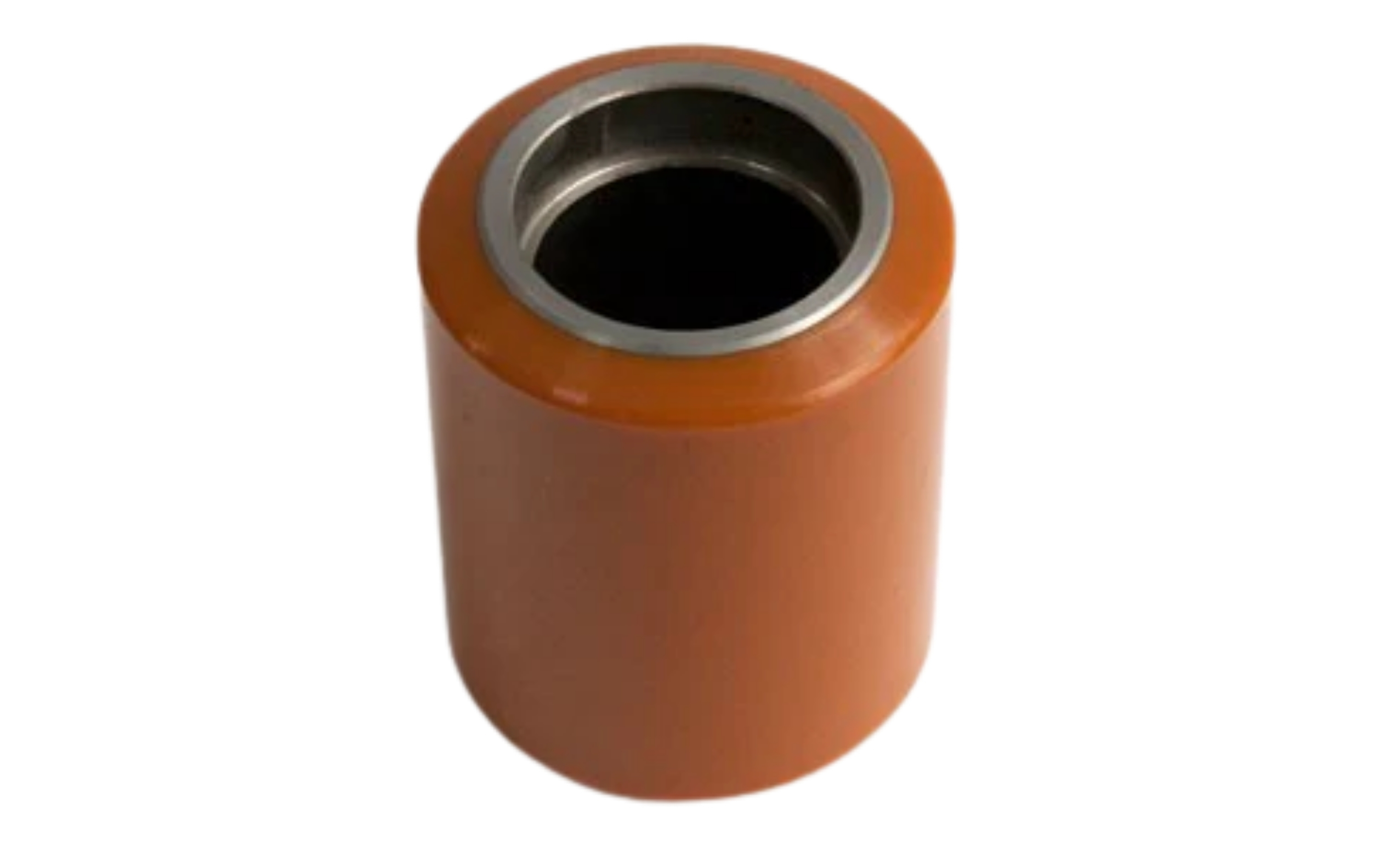

The RA-312636-000 load wheel is a durable replacement for Raymond electric pallet trucks. It has a 3.25-inch diameter and a 4.48-inch width, with a heavy-duty polyurethane tread on a metal core. The wheel includes pre-installed precision ball bearings, making it easy to mount.
It is used in Raymond 8210 series walkie pallet jacks, 11 series reach trucks, and 12 series order pickers.
The 95 Shore A polyurethane material offers a balance of wear resistance and floor protection. Replacing a damaged wheel restores smooth travel, proper load distribution, and stable handling under full load.
Cross References
This Raymond load wheel assembly can also be found under the following part numbers or references:
Product Specifications
The specifications of the RA-312636-000 load wheel assembly are mentioned below.
Features of this Product
This replacement wheel matches the original Raymond polywheel with a diameter of 3.25″ (3¼") and an overall tread width of 4.50″.
The tread uses a 95A durometer Durarun polyurethane and is non-marking.
Heavy-duty core & pre-installed sealed bearings
Replacing worn or flat-spotted wheels with this assembly restores stability, reduces vibration, and improves load tracking—especially during turns.
The high-hardness poly and sealed bearings are engineered for extended performance under normal warehouse conditions.
Warranty Information
1-year limited manufacturer’s warranty against defects in materials or workmanship.
Our Return & Refund Policy
You can return it within 30 days of delivery. The wheel must be unused, like-new, and in its original packaging. It must be clean and free of installation marks. A 20% restocking fee applies unless the return is due to our error or a defect. Shipping costs are typically non-refundable, except for mistakes or defects. For more details, refer to our Return Policy.
Not Sure If This Load Wheel Fits Your Equipment?
Reach out by phone at 832-239-5393 (or 1-800-210-8170) or email info@palletjackson.com. We’re available Monday to Friday, 9 am to 6 pm EST.
Contact us and we’ll ensure you get exactly what you need to keep your equipment running safely.
Frequently Asked Questions
Q: Is this wheel sold individually or as a set?
A: Sold individually with bearings installed, no axle included. Most Raymond jacks use four (two per fork). Replace in pairs for even wear; full kits include wheels and hardware.
Q: What does the “-A” or “-KIT” suffix mean on similar Raymond part numbers?
A: “-A” often means wheel plus hardware; “-KIT” includes two wheels and hardware; “-XL” means a harder, long-life compound. Base 312636-000 is the wheel alone, interchangeable with these variants if hardware matches.
Q: How hard is it to press the new bearings into this wheel?
A: No pressing needed—bearings are factory-installed. Wheel is ready to mount; just install on the axle and secure. Future bearing changes usually mean replacing the whole wheel assembly.
Q: What maintenance can extend the life of these load wheels?
A: Keep floors clean, avoid chemicals, don’t overload, prevent lock-ups, and check axle alignment. These habits can make wheels last years.
Q: How do polyurethane wheels perform in cold storage?
A: Polyurethane hardens in cold, slightly reducing grip but extending wear life. Works well in typical cold storage; consider freezer-grade wheels for constant sub-zero use.
Q: Can I mix standard wheels and “XL” wheels on the same pallet jack?
A: Possible but not recommended. Mixing hardness can cause uneven wear and handling issues. Replace all load wheels with the same type for consistency.
Q: What are the signs that the bearings inside this load wheel are failing?
A: Noise, rough rolling, wobble, or heat indicates bearing failure. Replacing the wheel assembly is easiest and ensures new bearings.
Q: Can this load wheel be used on non-Raymond equipment?
A: May fit other brands with matching size (3¼″ × 4½″, 25 mm bore), but check axle size and hub width. Mismatches can cause alignment or safety issues.
Q: What role do these front-load wheels play versus the drive wheel?
A: Drive wheels power and steer; load wheels carry most weight, enable fork entry, and roll freely for smooth movement. Both are critical for performance.
