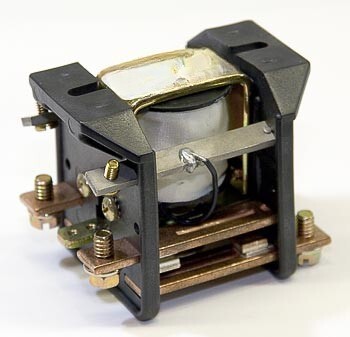

CR-090302 Contactor for Crown M Series Stacker – 12V, 75A
SKU: CR 090302
Product Reviews (0)
Purchased this product? Let us know your feedback by logging in to your account
Product Description
CR-090302 Contactor for Crown is a 12-volt, 75-amp electric contactor designed for Crown M Series walkie stacker pallet trucks. It serves as a high-current electrical relay within the control system, turning power on and off to the drive or hydraulic circuits as needed. This aftermarket contactor directly replaces Crown part number 090302 (also referenced as CR090302 or Crown 090302) with matching form, fit, and function. Built with heavy-duty contacts and a robust coil, it ensures reliable current switching under demanding operation. The unit comes as a complete contactor assembly (coil included) ready to install into the Crown M Series stacker’s contactor panel. All electrical specifications meet or exceed the original OEM requirements for voltage and current capacity. This replacement contactor restores proper operation to your Crown electric pallet jack, supporting consistent performance and safe material handling.
Cross References
This contactor can also be found under the following part numbers:
Product Specifications
Features of this Product
Switches 75 amps continuously to power pallet jack motors without overheating.
Uses a 12V DC coil for reliable activation on Crown M Series stackers.
Silver-alloy contact tips resist arcing and wear, ensuring a long service life.
Matches OEM CR-090302 footprint with identical mounting and terminals.
Sealed housing protects the coil and contacts from dust and debris.
Handles high-cycle use for frequent forward, reverse, and lift commands.
Direct replacement for Crown part 090302 with no wiring changes needed.
Warranty Information
1-year limited manufacturer warranty.
Our Return & Refund Policy
We offer a 30-day return policy on this product. To be eligible for a return, the contactor must be in the same condition as received – unused, with original tags, and in its original packaging. Please retain your receipt or proof of purchase. For full details and instructions, refer to our Return & Refund Policy.
Not Sure If This Contactor Fits Your Equipment?
We’re here to help. Contact our parts specialists to verify compatibility with your specific model and serial number. You can reach us via phone at 832-239-5393 or 1-800-210-8170, by email at info@palletjackson.com, or through our website’s live chat. Our team is available Monday–Friday, 9 am–6 pm EST, to assist with any questions and ensure you get the right part for your equipment.
Frequently Asked Questions
Q: What does a contactor do in a Crown electric pallet jack?
A: The contactor is a heavy-duty relay that controls current to the drive or pump motor. When energized, it closes to send power from the battery; when released, it opens to stop the motor. On Crown pallet jacks, the CR-090302 turns travel on or off and lifts functions safely.
Q: Is the CR-090302 contactor an OEM Crown part or an aftermarket part?
A: The CR-090302 we supply is an aftermarket replacement designed to Crown OEM standards. It matches part number 090302, fits Crown M Series stackers, and functions identically. Aftermarket versions offer a cost-effective alternative with the same durability and performance, backed by a warranty for dependable use.
Q: What are the electrical specifications of this contactor?
A: The coil operates at 12V DC, while the contacts handle 75 amps continuously. It’s designed for Crown 24V trucks that use a reduced-voltage coil circuit.
Q: Does this contactor require any special wiring or suppression diodes?
A: The contactor matches the OEM terminal layout: two large posts for power and smaller ones for the coil. It does not include a suppression diode internally, so reuse or replace any external diode in your Crown harness. No additional wiring changes are required for installation.
Q: Are forklift contactors interchangeable between models or brands?
A: Usually no. Contactors vary in coil voltage, current rating, mounting, and terminal design. Using incorrect contactors can cause fitment or performance issues. Always use the exact part number specified for your forklift model.
Q: What does it mean that the contactor is “sealed,” and why is that important?
A: A sealed contactor has an enclosed coil and contacts, preventing dust, moisture, or debris from entering. This protects against wear, sticking, or corrosion in industrial environments.
