CM CL3011 Formed Clevis for Commercial Hydraulics Cylinder Mount
SKU: CM-CL3011
Product Reviews (0)
Purchased this product? Let us know your feedback by logging in to your account
Product Description
CM CL3011 Formed Clevis attaches to the Commercial Hydraulics cylinder rod as a pivot mount. It welds onto base or rod ends.
It features a 0.75-inch pin hole and measures 2.25 inches in overall length. The internal clevis width is 1.25 inches to accommodate the mating lug. This clevis is fabricated from a 3/8-inch-thick A36 steel plate for its strength and weldability. It is designed to weld onto a 0.50-inch diameter rod end, providing a secure permanent connection.

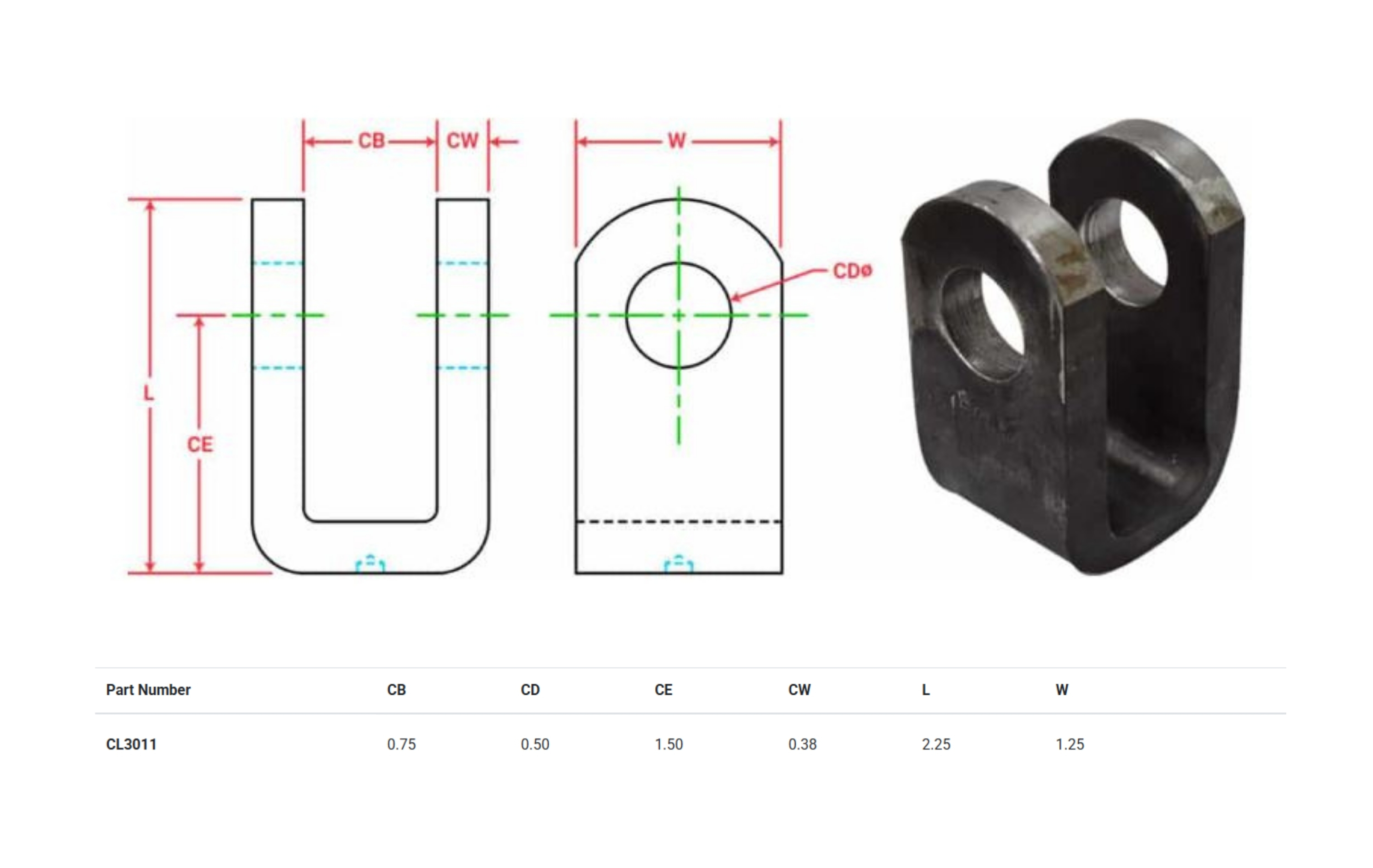

See Diagram for its accurate dimensions:
Note: Supplied as clevis only – pivot pin is not included (sold separately).
Product Specifications
The specifications of this product are mentioned below.
Features of this Product
Direct-fit replacement clevis for Commercial Hydraulics cylinders in a pallet jack.
Formed from a 3/8-inch thick steel plate for high strength and durability.
The precision 0.75-inch pin bore ensures a secure fit for the pivot pin.
1.25-inch inside clevis width matches the original mounting interface.
Weld-on design for a permanent, robust attachment to the cylinder rod.
Maintains proper cylinder alignment to prevent binding during lifting.
Built to OEM specifications for reliable performance and fit.
Manufactured with tight tolerances for smooth pivot operation.
Warranty Information
1-year limited manufacturer warranty. It is warranted against manufacturing defects for one year from the date of purchase, provided it is used under normal conditions.
Our Return & Refund Policy
We offer a 30-day return policy for this product. To be eligible for a return, the item must be unused, in the original packaging, and accompanied by proof of purchase. If a return is due to a change of mind and not a defect, a 20% restocking fee will be deducted from the refund amount. Please refer to our Refund Policy page for full details on the return process.
Not Sure If This Part Fits Your Equipment?
You can reach us at 832-239-5393 or 1-800-210-8170, email info@palletjackson.com, or use our live chat. Our team is available Monday through Friday, 9:00 AM to 6:00 PM EST. We’ll ensure you get the correct part for your equipment.
Frequently Asked Questions
Q: What is the function of a clevis in a hydraulic pallet jack?
A: It connects the hydraulic cylinder to the lifting linkage, allowing pivoting movement for smooth fork raising and lowering while keeping the cylinder securely attached. This hinge action ensures controlled, safe, and efficient lifting and lowering during pallet jack operation.
Q: What are the key dimensions of the CM CL3011 clevis?
A: Pin hole diameter 0.75″, inside width 1.25″, overall length 2.25″, ear thickness 0.38″, fits 0.50″ cylinder rod end. These dimensions match OEM specs and ensures correct alignment and compatibility with Commercial Hydraulics cylinders in pallet jack.
Q: Is this clevis an original OEM part or an aftermarket replacement?
A: It’s an aftermarket replacement for Commercial Hydraulics pallet jacks, built to OEM specifications for fit, material, and durability. It delivers the same performance and reliability as the original part at a more cost-effective price.
Q: Does the clevis include the pin or any mounting hardware?
A: No, sold separately. Requires a 0.75″ pivot pin and retainer, which can be reused if in good condition or replaced. Using a new pin ensures secure installation and optimal long-term performance of the clevis assembly.
Q: What does the part number CM-CL3011 signify?
A: “CM” indicates Commercial Hydraulics, “CL” stands for clevis, and “3011” is the specific model identifier. This code ensures accurate ordering and proper fitment for compatible hydraulic pallet jack models.
Q: How can I verify that this clevis will fit my equipment?
A: Confirm it’s for a Commercial Hydraulics cylinder, matches the dimensions, and has a 3/4″ pin with 1.25″ width. Measuring your existing clevis and checking part codes will ensure a correct fit and compatibility.
Q: What kind of load can this clevis handle?
A: Made from high-strength steel, it handles well beyond pallet jack forces, with similar brackets rated 12,000–13,600 lbs tensile load. This strength rating ensures dependable operation under heavy-duty, repetitive warehouse use.
Q: What is the difference between a “formed” clevis and other types, like a forged clevis?
A: Formed clevises are bent from steel plate, precise, strong, and cost-effective; forged ones are solid, stronger, and costlier. For pallet jacks, formed clevises provide more than adequate strength and reliability.
Q: Should I replace the pivot pin or other parts when installing a new clevis?
A: Yes, if the pin is worn or bent. Replacing both ensures a secure fit and longer service life. This also prevents uneven wear and maintains the safe operation of the pallet jack’s lifting system.
